MASTER STREAM NOZZLES
AKROFOAM™

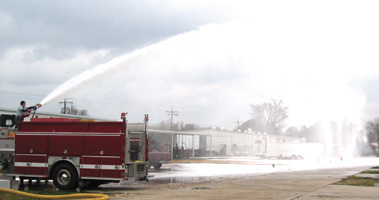

The Akrofoam nozzles are self-educting master stream nozzles designed for educting foam at flow rates up to 1000 gpm (4800 lpm).
Manual pattern control
10’ pick up hose and 40" tube
STYLE 4470
4475 PYROLITE AKROFOAM
- Spring loaded baffle that allow flow setting selection of 350,500,750, or 1000 gpm (1325,1900,2900, or 3800 lpm) with a simple push and turn of the baffle head.
- Quick connect, adjustable metering head with pick up rates 1% & 3%, plus 6% for 350 & 500 gpm and 1% & 3% for 750 & 1000gpm
4470 BRASS AKROFOAM
- Factory set at 500 gpm (1900 lpm) and field changeable to 350,750, or 1000 gpm (1325,2900, or 3800 lpm)
- Grease fitting for easy maintenance
- Optional Foam Shutoff Valve & Drum Kit
| STYLE |
MATERIAL |
PATTERN
CONTROL |
FLOW AT 100 PSI (7bar) |
INLET |
LENGTH |
WEIGHT
LBS. |
| GPM |
LPM |
| 4475 |
Pyrolite |
Manual |
500 (350, 750 & 1000) |
1900 (1325, 2900 & 3800) |
2 1/2" |
9 1/4" |
12 |
| 4470 |
Brass |
Manual |
500 (350, 750 & 1000)* |
1900 (1325, 2900 & 3800)* |
2 1/2" |
12 3/8" |
25 |
|
* Factory set to 500 gpm - field changeable to 350. 750 or 1000 gpm with spacers included with nozzle.
|
TURBOMASTER™
A family of multi-flow Master Streams adjustable to four constant flow settings.
- Pattern detents for positive stream positioning
| STYLE |
MATERIAL |
PATTERN
CONTROL |
FLOW AT 100 PSI (7bar) |
OPTIONAL FLOW AT 7 bar |
INLET |
TEETH |
LENGTH |
WEIGHT
LBS. |
| GPM |
LPM |
GPM |
LPM |
| 1745 |
Pyrolite |
Manual |
250-400-
550-750 |
950-1512-
2100-2900 |
- |
500-1000-
1500-2000 |
2 1/2" |
Spinning |
9" |
11 |
| 1755 |
Pyrolite |
Manual |
500-750-
1000-1250 |
1900-2900-
3800-4800 |
- |
- |
2 1/2" |
Spinning |
10" |
13 |
| 1757 |
Pyrolite |
Manual |
350-500-
750-1000 |
1325-1900-
2900-3800 |
- |
- |
2 1/2" |
Spinning |
10" |
13 |
FIREFOX™ NOZZLE
3293 FireFox Electric Nozzle
An electrically controlled nozzle with flows from 15 to 500 gpm (60 to 1900 lpm) at an operating pressure of 100 psi (7 bar). The FireFox nozzle comes with either a single fixed flow baffle or an adjustable four setting baffle and is for use with 12 or 24 Volt monitors featuring current limiting, such as the Style 3463 FireFox.
- 1 1/2" swivel inlet for flows up to 350 gpm
- 2 1/2" swivel inlet for flows 350 to 500 gpm
- Spinning teeth
- Optional flat disperse pattern - Must specify
- Optional add-on foam tubes - See page 17
- Adjustable Flow Options:
- 30-60-95-125 gpm (115-230-360-475 lpm) with electric flush
- 125-175- 250-350 gpm (475-660-950-1325 lpm) without electric flush
- 350-400-450-500 gmp (1325-1525-1700-1800 lpm) without electric flush
- Fixed Flow Options: (Must specify flow rate)
- 15 to 200 gpm (60 to 750 lpm) with electric flush
- 225 to 500 gpm (850 to 1900 lpm) without electric flush
| STYLE |
FLOW
GPM |
LENGTH |
WEIGHT
LBS. |
| 1 1/2" |
15-125 |
7" |
5 |
| 1 1/2 " |
125-350 |
7 3/7" |
7.2 |
| 2 1/2" |
350-500 |
7 3/7" |
7.5 |
AQUASTREAM™
A fixed gallonage master stream nozzle designed for heavy-duty use on fixed monitors.
- With grease fitting
| STYLE |
MATERIAL |
PATTERN
CONTROL |
FLOW AT 100 PSI (7bar) |
INLET |
TEETH |
LENGTH |
WEIGHT
LBS. |
| GPM |
LPM |
| 4450 |
Brass |
Manual |
500 (300 & 750)* |
2900 (1140 & 2660)* |
2 1/2" |
Fixed |
7" |
14 1/2 |
| 4452 |
Pyrolite |
Manual |
500 (300 & 750)* |
1900 (1140 & 2660)* |
2 1/2" |
Fixed |
7" |
4 3/4 |
|
* Field changeable spacers included with nozzle
|
RAMPAGE™
STYLE 4460
A fixed gallonage master stream nozzle with built-in stream shaper designed for flows up to 1250 gpm. Ideal for heavy-duty use on fixed monitors.
- Style 4460 has twist shutoff
| STYLE |
MATERIAL |
PATTERN
CONTROL |
FLOW AT 100 PSI (7bar) |
INLET |
TEETH |
LENGTH |
WEIGHT
LBS. |
| GPM |
LPM |
| 4460 |
Brass |
Manual |
750 (500, 1000 & 1250)* |
2900 (1900, 3800 & 4800)* |
2 1/2" |
None |
9" |
23 1/4 |
| 4461 |
Brass |
Manual |
750 (500, 1000 & 1250)* |
2900 (1900, 3800 & 4800)* |
2 1/2" |
None |
9" |
23 1/4 |
|
* Factory set at 750 gpm - field changeable to 500 or 1000 gpm, spacers included with nozzle. Must specify 1250 gpm.
|
MERCURY™ NOZZLE
The Mercury nozzles have excellent straight stream performance and a wide, dense, fully adjustable fog pattern. Choose between the single flow orifice Style 4445 and the adjustable flow baffle Style 4447.
STYLE 4445
Mercury Nozzle
| STYLE |
MATERIAL |
PATTERN
CONTROL |
FLOW AT 100 PSI (7bar) |
INLET |
TEETH |
LENGTH |
WEIGHT
LBS. |
| GPM |
LPM |
| 4445 |
Pyrolite |
Manual |
500 |
1900 |
2 1/2" |
Spinning |
7" |
5 |
| 4447 |
Pyrolite |
Manual |
250-375-500 |
950-1400-1900 |
2 1/2" |
Spinning |
7" |
5 |
SINGLE GALLONAGE MASTER STREAM
STYLE 2171
| STYLE |
MATERIAL |
PATTERN
CONTROL |
FLOW AT 100 PSI (7bar) |
INLET |
TEETH |
LENGTH |
WEIGHT
LBS. |
| GPM |
LPM |
| 2171 |
Brass |
Manual |
1000-2000* |
3800-7600* |
3 1/2" |
None |
12" |
36 |
| * Specify flow in 100 gpm (380 lpm) increments. Specify pressure from 70-100 psi (4.9-7 bar) in 5 psi (.35 bar) increments |
EXCEL 1000™
Single fixed flows with a spring loaded baffle to provide flow setting selection with a simple turn of the baffle head.
| STYLE |
MATERIAL |
PATTERN
CONTROL |
FLOW AT 100 PSI (7bar) |
INLET |
TEETH |
LENGTH |
WEIGHT
LBS. |
| GPM |
LPM |
| 1747 |
Pyrolite |
Manual |
300-500-800-1000 |
1140-1900-3030-3800 |
2 1/2" |
Spinning |
8 1/2" |
8 1/2 |
| 3747 |
Brass |
Manual |
300-500-800-1000 |
1140-1900-3030-3800 |
2 1/2" |
Spinning |
8 1/2" |
25 |
BLACK WIDOW®
STYLE 2151
STYLE 2156
| STYLE |
MATERIAL |
PATTERN
CONTROL |
FLOW AT 100 PSI (7bar) |
INLET |
TEETH |
LENGTH |
WEIGHT
LBS. |
| GPM |
LPM |
| 2151 |
Brass |
Manual |
300-1000* |
1140-3800* |
2 1/2" |
Spinning |
8 1/2" |
25 |
| 2152 |
Pyrolite |
Manual |
300-1000* |
1140-3800* |
2 1/2" |
Spinning |
8 1/2" |
9 |
| 2155 |
Pyrolite |
Hydraulic |
300-1000* |
1140-3800* |
2 1/2" |
Spinning |
8 1/2" |
9 |
| 2156 |
Brass |
Hydraulic |
300-1000* |
1140-3800* |
2 1/2" |
Spinning |
8 1/2" |
29 |
| 2158 |
Brass |
Hydraulic |
1000-1500* |
3800-5700* |
2 1/2" |
Spinning |
8 1/2" |
29 |
|
* Specify flow in 50 gpm (190 lpm) increments. Specify pressure from 70-100 psi (4.9-7 bar) in 10 psi (.7 bar) increments
|
